VENTILATION KIT (AIR IN/OUT)
For connecting to SolarVenti regulator.
This kit is to remove the moist air in winter, to extract warm air in summer, or to ventilate with cool air from the north in summer.
The kit is for 12V and has no running costs as it connects so an SolarVenti panel that is completely powered by the sun.

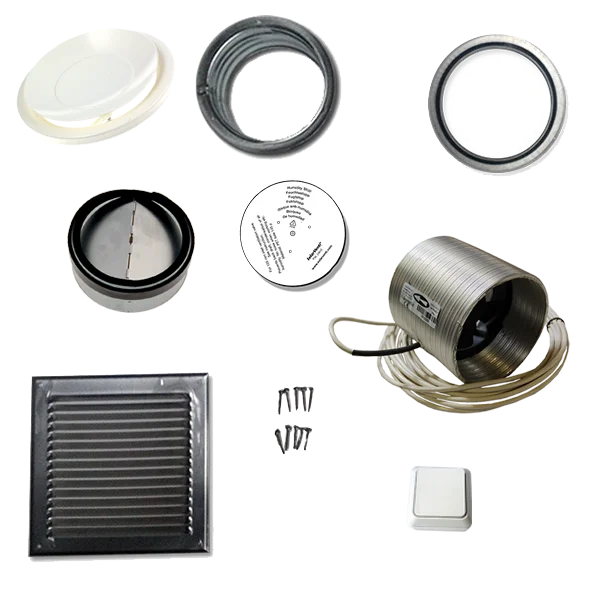

- 1 Humidity Stop
- 1 Non-return valve (metallic)
- 1 Square grid 190 x 190 mm
- 1 Flexible aluminum tube ø125 x 400 mm, 3.4 W Fan and cable (available in 5.1W)
- 1 Air inlet nozzle with frame ø125 mm
- 1 End frame
- 1 Switch (alternative with thermostat)
- 1 Bag of screws
- 1 Installation manual
Ventilation kit (Air In/Out)
Kit ventilation can be used in two ways:
1. Exhaust
A Ventilation Kit can be used as an exhaust for the humid air. An exhaust is necessary in the basement or other buildings, which can’t breath or need extra ventilation. A Ventilation Kit will usually be connected to a SolarVenti basement panel, where the solar cell is able to drive two fans. Thus the exhaust will be working at the same time as the solar air collector.
2. Cooling
A Ventilation Kit can also be used as a cooling kit installed on the north side of the building. The kit will usually be combined with a standard solar air collector – both connected to a regulator with a thermostat. The thermostat regulates the maximum temperature of the room. When the maximum temperature is reached the system stops the injection of warm air (via the solar air collector) and at the same time starts the injection of cold air (via the Ventilation Kit mounted on the north side).
- Simple switch
- Alternative with thermostat
