SOLARVENTI SV14K
- For dehumidification covers areas up to 55 m2
- 1000W energy supply per year
- 170 m3/hour nominal airflow
- 60 – 110 m3 / hour performance airflow
- SControl regulator or standard regulator
- Wall mounting or roof mounting
- Horizontal or vertical mounting
- Dimensions 197,4 x 70,4 x 5,5 cm
- From April 2018 -> 201 x 70 x 5,5 cm
- Wall, flat or angle installation
- 18W Solar cell (PV)
- 3,4W Fan
- Weight 14 kg.

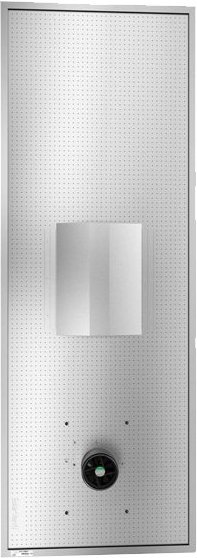

SolarVenti SV14K model for basements – Complete system with 1.40 m2 surface, for basements up to 55 m², including wall mounting kit and electronic regulator with room thermostat, speed regulator for the fan and on / off. The air outlet connection: Ø125 mm. Solar cell and fan mounted on the back of the collector.
The model for Basements SolarVenti® (SVK) is a SolarVenti® (SV) model specially modified for use in the basement area with greater capacity of solar cell and the air outlet closer to the edge. The model is available in sizes SV14K, SV20K and SV30K.
- Regulator
- Air inlet nozzle on wall or ceiling
